| Accessible Bellows Sealed Valve Dimensions and Material |
| |
|
| |
| LM64XX |

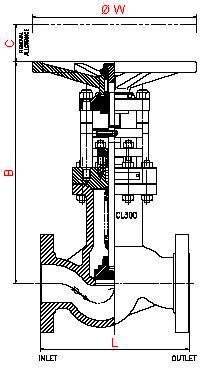

Straight Pattern Class 300 Long/Short Tongue (LT/ST)
|
| |
|
 |
| Size |
B |
C |
W |
L |
Approx.
Weight |
15
1/2" |
352
13 7/8" |
146
5 3/4" |
150
5 7/8" |
164.7
6 1/2" |
16.2 |
20
3/4" |
352
13 7/8' |
146
5 3/4" |
150
5 7/8" |
190.7
7 1/2" |
16.3 |
25
1" |
352
13 7/8' |
146
5 3/4" |
150
5 7/8" |
215.7
8 1/2" |
16.3 |
40
1 1/2" |
392
15 7/16" |
170
6 11/16" |
200
7 7/8" |
241.7
9 1/2" |
21.5 |
50
2" |
398
15 11/16" |
170
6 11/16" |
260
10 1/4" |
279.7
11" |
25.5 |
80
3" |
474
18 11/16" |
212
8 3/8" |
350
13 3/4" |
330.7
13" |
60.1 |
100
4" |
497
19 9/16" |
226
8 15/16" |
350
13 3/4" |
365.6
14 3/8" |
85.2 |
150
6" |
619
24 3/8" |
295
11 5/8" |
500
19 3/4" |
456.7
18" |
170 |
200
8" |
925
36 7/16" |
359
14 1/8" |
Gear OP. |
571.7
22 1/2" |
313 |
250
10" |
958
37 11/16" |
381
15" |
Gear OP. |
634.7
25" |
444 |
300
12" |
987
38 7/8" |
394
15 1/2" |
Gear OP. |
723.7
28 1/2" |
525 |
350
14" |
990
39" |
380
14 15/16 " |
Gear Op. |
851
33 1/2 |
- |
|
| |
Gearboxes Available for Larger Sizes |
|
| For detailed Parts List select material code from the table below: |
| |
| Material Code |
Body/Bonnet |
Bellows |
Stem |
|
|
LF2/LCC |
Type 316L/316Ti |
Type 316 |
|
LF2/LCC |
Hastelloy C276 |
Type 316 |
| 22 |
LF2/LCC |
Hastelloy C276 |
Hastelloy C22 |
| 26 |
LF2/LCC |
Monel 400 |
Monel 400 |
|
F316L/CF8M |
Type 316L/316Ti |
Type 316 |
|
F316L/CF8M |
Hastelloy C276 |
Type 316 |
|
Inconel Alloy 600 |
Hastelloy C276 |
Hastelloy C22 |
| 62 |
Monel 400 |
Hastelloy C276 |
Hastelloy C22 |
|
Hastelloy |
Hastelloy C276 |
Hastelloy C22 |
|
| |
|
|
